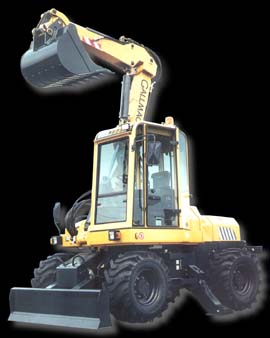

WMW-100

WMW-100

AVAILABLE BY REQUEST:
Reversed buckets from 350 to 1,050 mm
Ditch-digging buckets
Pushing buckets for loading
Rotating trunk loading pusher
Ripper hook
Hydraulic hammer on the arm
Mowing bar and hydraulic rotating mower
Hydraulic drill
Submersed pumps
Front buckets 2,100 mm
Grading blade
Grapple front bucket
Trunk forks
Mixing buckets
Pushing buckets 4 in 1
Pallet forks
Crane-arm


GENERAL MACHINE DATA


  • DIESEL ENGINE
    • Four Cylinder Perkins, 1004-42T 4000 cc., NATURALLY ASPIRATED, "Quadram" direct injection for the highest energy savings and environmental respect, water-cooled. Max. Power (DIN 70020) - 65 KW (88 HP) at 2400 R.P.M. Max. Torque 291 Nm at 1400 R.P.M.
  • TRANSMISSION
    • Rexroth hydrostatic, with closed circuit and variable displacement on the pump and on the motor. "Automotive" regulation on both pump and motor, for the maximum traction graduality in both directions. "Inching" pedal control for the regulation of the speed independently of the rotation speed of the diesel engine. Forward-Backward Driving electrical lever located under the steering wheel. Two ranges of speed on both Forward and Backward direction from 0 up to 28 Km/h
  • AXLES
    • Clark Hurth, both steering and driving, with epicycloidal reduction gears on the hubs; the fore one is fixed and the rear one is swinging ±10°. Self locking differential on rear axles, on fore axles as well on demand. Swing locking on rear axles by electric control.
  • BRAKES
    • Multiple disk brakes, in oil bath inside the axles.
    • Service brakes: on the four wheels with pedal servo-assisted control.
    • Parking brakes: on the front wheels, by electric control
    • Both Service and Parking Brakes are automatically on in case of lack of pressure in the hydraulic system
    • While operating, the brakes are used only when a bigger braking effort than the one provided by the hydrostatic transmission is required.
  • STEERING
    • Four-wheel steering, hydraulic servo-assisted, with the possibility of choosing 3 different solutions from the cab:
      • - Rear-wheel steering for driving on roads
      • - Four-wheel steering on opposite sides
      • - Four-wheel steering on the same side (Creb steering)
    • Min. steering radius - inner part of the tires 2,000 mm.
    • External tires min. steering radius 4,400 mm.
    • Min. turns for total steering wheel 3.5.
  • TIRES
    • Four wheels: 405 70 R20 on demand, 18 X 19.5 TS35 "stabilarge" on demand
  • OUTRIGGERS
    • Either bulldozer blade or two fore outriggers on the side excavator version. Two central outriggers more (on demand). Each outrigger is independent from the other and is electronically controlled.
  • HYDRAULIC SYSTEM
    • Rexroth piston pump with variable delivery capacity and constant power adjustment for working operations at a oil flow of 156 lt/minute. Working pressure: 280 bar.
    • The full simultaneous movements are granted by use of "LOAD SENSING" proportional valves that, coupled to the two variable displacement pumps allows to reset the pumps' displacement when no operative movement is required. Hydro-guide and swinging gear pump with delivery capacity 37 lt/min. Working pressure 200 bar.
  • CONTROLS
    • The working controls are servo-assisted with two cross manipulators directly on the armrests of the chair, actuation of the first arm, second boom, rotation, excavation boom and bucket have priority.
    • The controls of the side excavator and supplemental users can be chosen by an electric push-button on the same controls.
    • Servo-assisted controls for maneuvering the stabilizers and fast tool fitting, servo-assisted, are independent and with electric control.
  • CAB
    • The windows all over the cab, including the ceiling, grant the complete view in all directions, and the opening of the door and the window on the rear side offer the aerification. The driver and maneuvere comfort is given by the ergonomic seat and by the regulation depending on the weight and height of the operator; moreover by the checking instruments of the lighting system both for the traffic and for working. The front windshield wiper with electrical glass-washer, the rotating lamp, the rear view mirror complete the side excavator equipment of this machine.
  • ACCESSORIES
    • STANDARD OUTFIT
      • Quick coupling for equipment replacement
      • Hydraulic lateral digging arm
      • Four anti-fall valve set
      • Heating system
      • 1st Additional hydraulic system for outfits
    • OPTIONAL
      • Self locking fore differentials
      • Hydraulic hammer
      • Air conditioned system
      • 2nd Additional hydraulic system for outfits
      • Rubber inserts for stabilizers
      • Hydraulic hand hammer
      • Centralized greasing/oversize tires

DIMENSIONS AND WEIGHT
Max height 3,000 mm
Max. width 2,300 mm
Max. length 4,980 mm
Weight as digging machine 9,750 Kg
Weight as loader 10,000 Kg

DIGGER'S PERFORMANCE
Buckets width 350 - 1,050 mm
Teeth breaking force 6,055 Kg
Teeth penetration 3,300 Kg

ELEVATOR

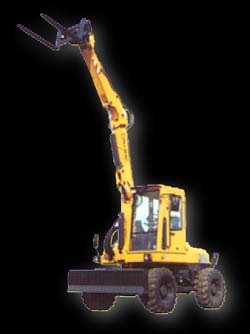

FORKS ELEVATOR
Forks length 1,200 mm
Loading capacity at max. radius 1,000 Kg
Loading capacity at min. radius 2,000 Kg
HOOK ELEVATOR
Loading capacity at max. radius 1,500 Kg
Loading capacity at min. radius 3,200 Kg
N.B. When the machine is equipped with forks or height adjustments hook, it is necessary to apply four anti-fall valves.

LOADING SHOVEL
Buckets width 2,300 mm
Teeth breaking force 4,520 Kg
Teeth penetration 4,500 Kg
