AVAILABLE BY REQUEST:
Reversed buckets from 380 to 1,100 mm

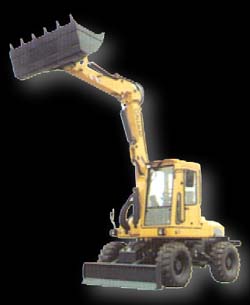

Pushing buckets for loading
Rotating trunk loading pusher
Hydraulic hammer on the arm
Mowing bar and hydraulic rotating mower
Front buckets 2,330 mm
Grapple front bucket
Pushing buckets 4 in 1

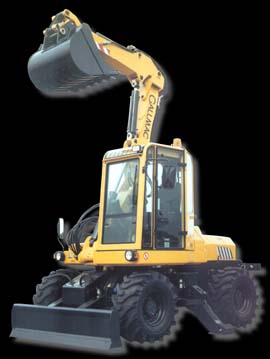

GENERAL MACHINE DATA
Four Cylinder Perkins, 1004-40T 4000 cc., TURBOCHARGED, "Fastram" direct injection for the highest energy savings and environmental respect, water-cooled. Max. Power (ISO 14396) - 80.5 KW (108 HP) at 2400 R.P.M. Max. Torque 385 Nm at 1400 R.P.M.
Rexroth hydrostatic, with closed circuit and variable displacement on the pump and on the motor. "Automotive" regulation on both pump and motor, for the maximum traction graduality in both directions. "Inching" pedal control for the regulation of the speed independently of the rotation speed of the diesel engine. Forward-Backward Driving electrical lever located under the steering wheel. Two ranges of speed on both Forward and Backward direction from 0 up to 26 Km/h
Clark Hurth, both steering and driving, with epicycloidal reduction gears on the hubs; the fore one is fixed and the rear one is swinging ±10°. Self locking differential on rear axles, on fore axles as well on demand. Swing locking on rear axles by electric control.
Multiple disk brakes, in oil bath inside the axles.
Service brakes: on the four wheels with pedal servo-assisted control.
Parking brakes: on the front wheels, by electric control
Both Service and Parking Brakes are automatically on in case of lack of pressure in the hydraulic system
While operating, the brakes are used only when a bigger braking effort than the one provided by the hydrostatic transmission is required.
Four-wheel steering, hydraulic servo-assisted, with the possibility of choosing 3 different solutions from the cab:
- Rear-wheel steering for driving on roads
- Four-wheel steering on opposite sides
- Four-wheel steering on the same side (Creb steering)
Min. steering radius - inner part of the tires 2,000 mm.
External tires min. steering radius 4,400 mm.
Min. turns for total steering wheel 3.5.
Four wheels: 405 70 R20 on demand, 18 X 19.5 TS35 "stabilarge" on demand
Either bulldozer blade or two fore outriggers on the standard version. Two central outriggers more (on demand). Each outrigger is independent from the other and is electronically controlled.
Rexroth piston pump with variable delivery capacity and constant power adjustment for working operations at a oil flow of 156 lt/minute. Working pressure: 280 bar.
The full simultaneous movements are granted by use of "LOAD SENSING" proportional valves that, coupled to the two variable displacement pumps allows to reset the pumps' displacement when no operative movement is required. Hydro-guide and swinging gear pump with delivery capacity 37 lt/min. Working pressure 200 bar.
The working controls are servo-assisted with two cross manipulators directly on the armrests of the chair, actuation of the first arm, second boom, rotation, excavation boom and bucket have priority.
The controls of the side excavator and supplemental users can be chosen by an electric push-button on the same controls.
Servo-assisted controls for maneuvering the stabilizers and fast tool fitting, servo-assisted, are independent and with electric control.
The windows all over the cab, including the ceiling, grant the complete view in all directions, and the opening of the door and the window on the rear side offer the aerification. The driver and maneuvere comfort is given by the ergonomic seat and by the regulation depending on the weight and height of the operator; moreover by the checking instruments of the lighting system both for the traffic and for working. The front windshield wiper with electrical glass-washer, the rotating lamp, the rear view mirror complete the standard equipment of this machine.
Quick coupling for equipment replacement
Hydraulic lateral digging arm
Four anti-fall valve set
1st Additional hydraulic system for outfits
Self locking fore differentials
Air conditioned system
2nd Additional hydraulic system for outfits
Rubber inserts for stabilizers
Hydraulic hand hammer
Centralized greasing/oversize tires
